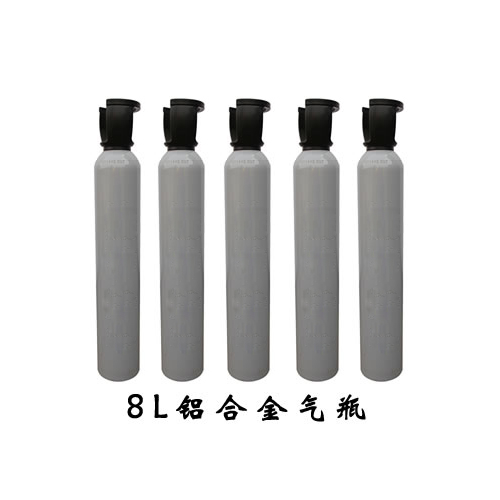

8L鋁合金氣瓶

8L鋁合金氣瓶

產品介紹

8L鋁合金氣瓶

技術參數

醫用氧氣瓶 (Medical Oxygen Cylinder)
品號 Part No.	型號 Model	外徑 Outside Diameter		容積 Water Capacity		壁厚 Wall Thickness		工作壓力 Service Pressure		重量 Weight		高度 Length
		mm	in	Lts	Cu in	mm	in	bar	psi	kgs	lbs	mm	in
MC1	LWH89-0.5-15	89	3.5	0.5	30.5	4.5	0.2	150	2175.6	0.8	1.8	167	6.6
MC2	LWH89-0.7-15	89	3.5	0.7	42.7	4.5	0.2	150	2175.6	0.8	1.8	208	8.2
MC3	LWH89-1.0-15	89	3.5	1.0	61.0	4.5	0.2	150	2175.6	1.2	2.6	269	10.6
MC4	LWH89-1.4-15	89	3.5	1.4	85.4	4.5	0.2	150	2175.6	1.5	3.3	350	13.8
MC5	LWH108-2.0-15	108	4.3	2.0	122.0	5.5	0.2	150	2175.6	2.2	4.9	340	13.4
MC6	LWH120-2.8-15	120	4.7	2.8	170.9	6.1	0.2	150	2175.6	2.9	6.4	392	15.4
MC7	LWH120-3.2-15	120	4.7	3.2	195.3	6.1	0.2	150	2175.6	3.2	7.1	437	17.2
MC8	LWH140-4.0-15	140	5.5	4.0	244.1	7.1	0.3	150	2175.6	4.2	9.3	410	16.1
MC9	LWH140-6.3-15	140	5.5	6.3	384.5	7.1	0.3	150	2175.6	5.8	12.8	605	23.8
MC10	LWH140-8.0-15	140	5.5	8.0	488.2	7.1	0.3	150	2175.6	7.4	16.3	741	29.2
MC11	LWH159-10.0-15	159	6.3	10.0	610.2	8.0	0.3	150	2175.6	8.8	19.4	730	28.7
MC12	LWH180-10.0-15	180	7.1	10.0	610.2	9.1	0.4	150	2175.6	10.1	22.3	605	23.8
MC13	LWH203-12.0-15	203	8.0	12.0	732.3	10.3	0.4	150	2175.6	13.0	28.7	592	23.3
MC14	LWH203-20.0-15	203	8.0	20.0	1220.5	10.3	0.4	150	2175.6	17.0	37.5	900	35.4
MC15	LWH232-30.0-15	232	9.1	30.0	1830.7	11.7	0.5	150	2175.6	26.0	57.3	1008	39.7
MC16	LWH232-40.0-15	232	9.1	40.0	2441.0	11.7	0.5	150	2175.6	32.0	70.5	1300	51.2
MC17	LWH250-50.0-20	250	9.8	50.0	3051.2	16.7	0.7	200	2900.8	55.0	121.3	1500	59.1
美標氧氣瓶系列 (DOT Standard Medical Oxygen Cylinder)
ML6	LWH111-1.2-15	111	4.4	1.2	73.2	5.5	0.2	150	2175.6	1.4	3.1	225	8.9
M9	LWH111-1.7-15	111	4.4	1.7	103.7	5.5	0.2	150	2175.6	1.8	4.0	290	11.4
MD	LWH111-2.9-15	111	4.4	2.9	177.0	5.5	0.2	150	2175.6	2.7	6.0	461	18.1
ME	LWH111-4.6-15	111	4.4	4.6	280.7	5.5	0.2	150	2175.6	4.9	10.7	688	27.1
M60	LWH184-10.5-15	184	7.2	10.5	640.8	12.2	0.5	150	2175.6	13.4	29.5	630	24.8
M90	LWH184-15.7-15	184	7.2	15.7	958.1	12.2	0.5	150	2175.6	18.2	40.1	890	35.0
MM	LWH203-21.4-15	203	8.0	21.4	1305.9	11.7	0.5	150	2175.6	18.0	39.7	954	37.6

•

•

•

•

•

•

•

•
